磁気ケーブル接続器

Magnetic Cable Connector 4 Pin Pogo Contacts Male Female Pair

全カテゴリー

精密回転部品

連絡ください

Ms. KIKI

union@upetech.net

13434524996

upetech

今連絡してください

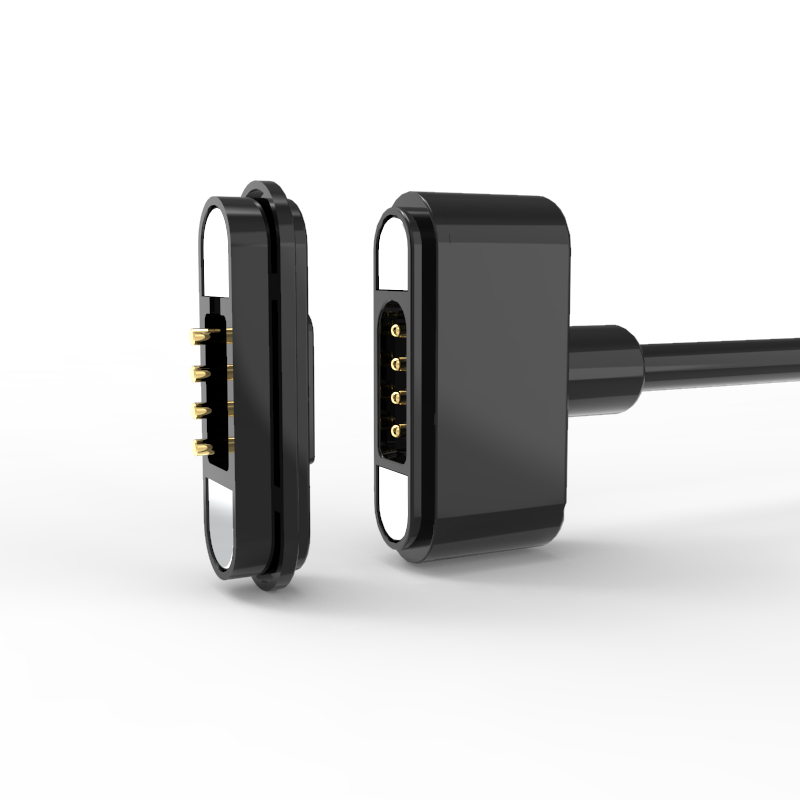

Magnetic Cable Connector 4 Pin Pogo Contacts Male Female Pair

ブランド名:	UPE
モデル番号:	VID0404A / VIC0450B
Moq:	5000
価格:	$1-$5
パッケージングの詳細:	PE袋
支払条件:	T/T

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

ISO9002

ドキュメント:

VID0404A.pdf

名前:

磁気ケーブル接続器

材料:

THN,ブラス,SUS304,NdFeB N52,TPE

スプリングフォース:

80g±20g

作業するオオカミ:

1.0mm

連続的な動作電流:

3.0A

最大瞬間の電流:

4.0A 最大

ボラッジ:

12V

磁力:

550g

機械的な生活:

50000サイクル分

接触抵抗:

50mΩ 最大 (PIN)

塩スプレーテスト:

48H

供給の能力:

5KPCS/日

ハイライト:

4 pin magnetic cable connector

pogo pin magnetic connector pair

male female magnetic cable contacts

製品説明

Magnetic Cable Connector 4 Pin Pogo Contacts Male Female Pair

The magnetic cable connector cable material is black TPE 80A outer mold of the joint, wire OD3.5mm 4C (red and black: 65*0.08, white and green: 16*0.08,tin-plated copper wire)Covered with black TPE.

The 4pin magnetic cable connector magnet is neodymium iron boron (NdFeB),the grade of the magnet is N52,the adhesive force of the magnetic cable connector male and female docking is more than 550G.

4Pin Magnetic Cable Connectors Parameter:

Name	Magnetic Cable connector
Type	DIP
Pin	4pin or customized
Pitch	2.20mm
Cable lenght	1000mm±20
Cable material	TPE
Pogo pin	Brass
Housing	Black HTN+30%GF UL94 V-0
Magnet	NdFeB N52 Plating Ni
Magetic force	550G
Spring force	80g±20g,at 1.0mm working storke.
Mechanical life	50000 cycle Min.
Continuous working current	3.0A
Maximum momentary current	4.0A maximum
Voltage	DC 12V
Contact resistance	50mΩ Max (PIN).
High voltage test	AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC.
Salt spray test	48H
Layout tolerance	±0.05mm
Certification	ROHS or REACH compliant product
Test	100% open and short test

4Pin Male Magnetic Cable Connector Drawing Size:

4Pin Female Magnetic Connector Drawing Size:

Advantages of Magnetic Connector:

Automatic adsorption connected experience; Easy operation;
Uses a magnetic interface to remove the device easier.
High life cycle. It supports 50,000-300,000 reattachment life times;
It is easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68);
Support a high current (3A-20A), faster recharge;
Excellent corrosion rating (48H-120H) meet the harsh environments；
Shape customized to meet with product shape matching, improve product selling point;
Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction(It is user-oriented and user-friendly)
Excellent scalability interface,Can be achieved(Power Signal Video Audio Jack Etc);
Development time is short, low-cost mold for customization;
Provide a reliable high RF signal transmission. Our connector is USB 2.0

Why choose UPE?

High-tech production with precision engineering
Competitive pricing without compromising quality
Systematic quality control for consistent performance
Professional customization service
Fast sample production capability
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards

Magnetic Cable Connectors Application:

Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones, Bluetooth headsets, etc.
Medical equipment, wireless equipment, data communications equipment, telecommunication equipment, automation and industrial equipment, audio-visual equipment
Aviation, aerospace electronic, military communication,Automotive, car navigation, test and measurement equipment
Consumer Electronics (mobile phones, tablet computers, Bluetooth headsets, camera, watch, portable consumer electronic products)

How to place the order

You send us drawing or sample
Our professional engineering team conducts the assessment
You confrim the drawing and we make the sample to send you
You test the sample and approved,then place an order and pay 50% deposit
We start to make the product
When the goods is done, we take photoes for your check and you then pay the balance
We deliver the products to you with DHL, TNT,UPS,Fedex

Payment and Shipping Details:

Payment Term: T/T,50% Deposit,50% Balance
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time: 10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable

Any question, please send to union@upetech.net
